Aluminium Honeycomb Wall Panel
₦95,000.00

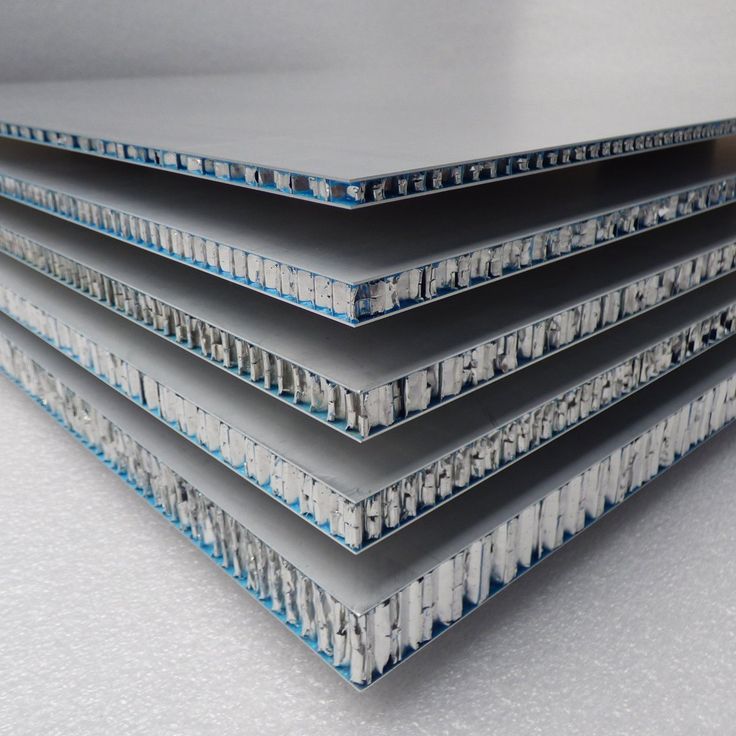

Aluminum honeycomb wall panels are lightweight composite panels made of two aluminum face sheets bonded to an aluminum honeycomb core. They are used for both interior wall finishes and exterior façade cladding because they offer high strength with low weight.
Key features
- Lightweight: Up to 70–80% lighter than solid aluminum panels of similar size.
- High strength and rigidity: The honeycomb core provides excellent stiffness and impact resistance.
- Fire resistant: Aluminum is non-combustible, making the panels suitable for many commercial applications.
- Corrosion resistant: Performs well in humid and coastal environments when properly finished.
- Flatness: Maintains a smooth, flat surface even in large panel sizes.
- Low maintenance: Easy to clean and resistant to fading with quality coatings.
Common applications
- Office building lobbies
- Hotel interiors
- Hospital corridors
- Airport terminals
- Shopping malls
- Elevator wall cladding
- Exterior curtain walls and façades
- Clean rooms and laboratories
Typical specifications
- Face sheet thickness: 0.5–1.5 mm
- Overall panel thickness: 10–50 mm (commonly 20 mm or 25 mm)
- Core material: Aluminum honeycomb
- Surface finishes:
- PVDF coating (ideal for exterior use)
- Polyester powder coating
- Anodized aluminum
- Wood-grain finish
- Stone or marble-look finish
- Brushed or mirror finish
Installation methods
- Mechanical fixing with concealed brackets
- Hook-on systems
- Cassette panel systems
- Adhesive fixing (for some interior applications)
Advantages over solid aluminum and ACP
| Feature | Aluminum Honeycomb | Aluminum Composite Panel (ACP) |
|---|---|---|
| Weight | Very light | Light |
| Rigidity | Excellent | Moderate |
| Large panel capability | Excellent | Limited |
| Fire performance | Excellent | Depends on core material |
| Flatness | Excellent | Good |
Typical uses in modern architecture
- Luxury hotel feature walls
- Corporate office reception areas
- High-rise building façades
- Metro and railway stations
- Museums and exhibition centers
- Commercial complexes
Aluminum honeycomb wall panels are often chosen for projects that require a premium appearance, long spans without visible deflection, excellent durability, and a high strength-to-weight ratio. They can also be custom-fabricated in a wide range of colors, textures, and sizes to suit architectural designs.
